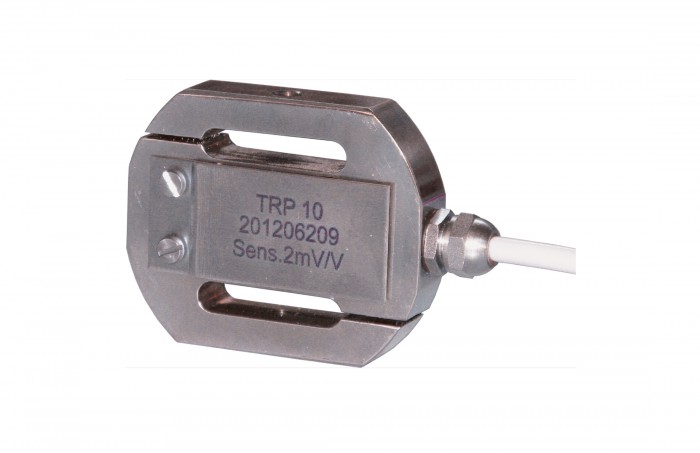

Load Cells TRP

Rated load (R.L.):	2÷50 kg
Rated output (R.O.):	2.0 mV/V ± 0.1%
Temperature effect on zero balance:	±0.005% R.O./°C
Temperature effect on output:	±0.005% on output/°C
Combined error:	±0.05% of R.O.
Repeatability:	±0.02% of R.O.
Creep (20 minutes):	±0.03% of R.O.
Input resistance:	350 ± 20 Ohm
Output resistance:	350 ± 5 Ohm
Insulation resistance:	> 5000 M Ohm
Recommended input:	2÷15 Vcc/ca
Temperature range:	-20 / +70°C
Compensated temperature range:	-10 / +50°C
Safe overload:	150% of R.L.
Ultimate overload:	> 300% of R.L.
Degrees of protection:	IP65
Deflection:	0.4 mm
Ultimate sideload:	300% of R.L.
Material:	Stainless steel 17-4PH (Avional 2kg)
