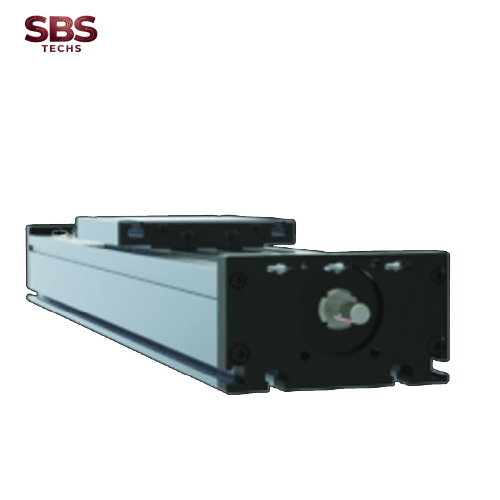

Screw Driven Modular Linear Actuators nook industries

Bộ truyền động tuyến tính mô-đun dẫn động bằng vít sử dụng vít acme và vít bi tốt nhất được sản xuất trên thế giới. Chúng cho phép gắn động cơ trực tiếp trong dòng có hoặc không có hộp số song song hoặc trong dòng. Chúng được thiết lập như một tiêu chuẩn phổ biến trong các ứng dụng chính xác như máy gia VIỆT và máy VIỆT cụ.

Lực đẩy/mô-men xoắn/độ cứng cao
Chiều dài vít lên đến 3 M

External Roller Bearing Guided

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELT 30 Dual Carriage	30	600	60	60	10	10	12	750	90	90	12	12	15
ELT 40 Dual Carriage	40	1200	700	650	20	18	25	1500	1200	900	25	32	35
ELT 60 Dual Carriage	60	2000	2000	1100	43	70	100	2500	3000	1700	67	90	120
ELT 60S Dual Carriage	60S	2000	3100	1600	65	140	170	2500	4100	2160	88	190	230
ELT 80 Dual Carriage	80	4000	2000	1100	55	80	120	5000	3000	1700	90	110	150
ELT 80S Dual Carriage	80S	4000	3600	1800	140	230	220	5000	4600	3000	170	270	300
ELT 100 Dual Carriage	100	8000	6500	2200	230	270	500	10000	8000	3600	300	400	750
ELT 125 Dual Carriage	125	12000	9000	4500	450	600	1150	15000	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELT 30 WAC Dual Carriage	30	600	60	60	10	10	12	750	90	90	12	12	15
ELT 40 WAC Dual Carriage	40	1200	700	650	20	18	25	1500	1200	900	25	32	35
ELT 60 WAC Dual Carriage	60	2000	2000	1100	43	70	100	2500	3000	1700	67	90	120
ELT 60S WAC Dual Carriage	60S	2000	3100	1600	65	140	170	2500	4100	2160	88	190	230
ELT 80 WAC Dual Carriage	80	4000	2000	1100	55	80	120	5000	3000	1700	90	110	150
ELT 80S WAC Dual Carriage	80S	4000	3600	1800	140	230	220	5000	4600	3000	170	270	300
ELT 100 WAC Dual Carriage	100	8000	6500	2200	230	270	500	10000	8000	3600	300	400	750
ELT 125 WAC Dual Carriage	125	12000	9000	4500	450	600	1150	15000	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELT 30	30	600	60	60	10	10	12	750	90	90	12	12	15
ELT 40	40	1200	700	650	20	18	25	1500	1200	900	25	32	35
ELT 60	60	2000	2000	1100	43	70	100	2500	3000	1700	67	90	120
ELT 60S	60S	2000	3100	1600	65	140	170	2500	4100	2160	88	190	230
ELT 80	80	4000	2000	1100	55	80	120	5000	3000	1700	90	110	150
ELT 80S	80S	4000	3600	1800	140	230	220	5000	4600	3000	170	270	300
ELT 100	100	8000	6500	2200	230	270	500	10000	8000	3600	300	400	750
ELT 125	125	12000	9000	4500	450	600	1150	15000	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELT 30 WAC	30	600	60	60	10	10	12	750	90	90	12	12	15
ELT 40 WAC	40	1200	700	650	20	18	25	1500	1200	900	25	32	35
ELT 60 WAC	60	2000	2000	1100	43	70	100	2500	3000	1700	67	90	120
ELT 60S WAC	60S	2000	3100	1600	65	140	170	2500	4100	2160	88	190	230
ELT 80 WAC	80	4000	2000	1100	55	80	120	5000	3000	1700	90	110	150
ELT 80S WAC	80S	4000	3600	1800	140	230	220	5000	4600	3000	170	270	300
ELT 100 WAC	100	8000	6500	2200	230	270	500	10000	8000	3600	300	400	750
ELT 125 WAC	125	12000	9000	4500	450	600	1150	15000	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELK 30 Dual Carriage	30	600	60	60	10	10	12	750	90	90	12	12	15
ELK 40 Dual Carriage	40	1200	700	650	20	18	25	1500	1200	900	25	32	35
ELK 60 Dual Carriage	60	2000	2000	1100	43	70	100	2500	3000	1700	67	90	120
ELK 60S Dual Carriage	60S	2000	3100	1600	65	140	170	2500	4100	2160	88	190	230
ELK 80 Dual Carriage	80	4000	2000	1100	55	80	120	5000	3000	1700	90	110	150
ELK 80S Dual Carriage	80S	4000	3600	1800	140	230	220	5000	4600	3000	170	270	300
ELK 100 Dual Carriage	100	8000	6500	2200	230	270	500	10000	8000	3600	300	400	750
ELK 125 Dual Carriage	125	12000	9000	4500	450	600	1150	15000	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELK 30 WAC Dual Carriage	30	600	60	60	10	10	12	750	90	90	12	12	15
ELK 40 WAC Dual Carriage	40	1200	700	650	20	18	25	1500	1200	900	25	32	35
ELK 60 WAC Dual Carriage	60	2000	2000	1100	43	70	100	2500	3000	1700	67	90	120
ELK 60S WAC Dual Carriage	60S	2000	3100	1600	65	140	170	2500	4100	2160	88	190	230
ELK 80 WAC Dual Carriage	80	4000	2000	1100	55	80	120	5000	3000	1700	90	110	150
ELK 80S WAC Dual Carriage	80S	4000	3600	1800	140	230	220	5000	4600	3000	170	270	300
ELK 100 WAC Dual Carriage	100	8000	6500	2200	230	270	500	10000	8000	3600	300	400	750
ELK 125 WAC Dual Carriage	125	12000	9000	4500	450	600	1150	15000	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELK 30	30	600	60	60	10	10	12	750	90	90	12	12	15
ELK 40	40	1200	700	650	20	18	25	1500	1200	900	25	32	35
ELK 60	60	2000	2000	1100	43	70	100	2500	3000	1700	67	90	120
ELK 60S	60S	2000	3100	1600	65	140	170	2500	4100	2160	88	190	230
ELK 80	80	4000	2000	1100	55	80	120	5000	3000	1700	90	110	150
ELK 80S	80S	4000	3600	1800	140	230	220	5000	4600	3000	170	270	300
ELK 100	100	8000	6500	2200	230	270	500	10000	8000	3600	300	400	750
ELK 125	125	12000	9000	45000	450	600	1150	15000	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELK 30 WAC	30	600	60	60	10	10	12	750	90	90	12	12	15
ELK 40 WAC	40	1200	700	650	20	18	25	1500	1200	900	25	32	35
ELK 60 WAC	60	2000	2000	1100	43	70	100	2500	3000	1700	67	90	120
ELK 60S WAC	60S	2000	3100	1600	65	140	170	2500	4100	2160	88	190	230
ELK 80 WAC	80	4000	2000	1100	55	80	120	5000	3000	1700	90	110	150
ELK 80S WAC	80S	4000	3600	1800	140	230	220	5000	4600	3000	170	270	300
ELK 100 WAC	100	8000	6500	2200	230	270	500	10000	8000	3600	300	400	750
ELK 125 WAC	125	12000	9000	45000	450	600	1150	15000	12000	6000	600	750	1350

Internal Roller Bearing Guided

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLT 120 Dual Carriage	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLT 160 Dual Carriage	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLT 200 Dual Carriage	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLT 120 Dual Carriage Extended Carriage	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLT 160 Dual Carriage Extended Carriage	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLT 200 Dual Carriage Extended Carriage	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLT 120 Dual Carriage Extended Carriage 6 Split Rollers	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLT 160 Dual Carriage Extended Carriage 6 Split Rollers	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLT 200 Dual Carriage Extended Carriage 6 Split Rollers	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLT 120	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLT 160	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLT 200	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLT 120 Extended Carriage	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLT 160 Extended Carriage	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLT 200 Extended Carriage	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLT 120 Extended Carriage 6 Split Rollers	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLT 160 Extended Carriage 6 Split Rollers	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLT 200 Extended Carriage 6 Split Rollers	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLK 120 Dual Carriage	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLK 160 Dual Carriage	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLK 200 Dual Carriage	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLK 120 Dual Carriage Extended Carriage	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLK 160 Dual Carriage Extended Carriage	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLK 200 Dual Carriage Extended Carriage	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLK 120 Dual Carriage Extended Carriage 6 Split Rollers	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLK 160 Dual Carriage Extended Carriage 6 Split Rollers	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLK 200 Dual Carriage Extended Carriage 6 Split Rollers	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLK 120	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLK 160	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLK 200	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLK 120 Extended Carriage	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLK 160 Extended Carriage	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLK 200 Extended Carriage	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLK 120 Extended Carriage 6 Split Rollers	120	800	900	1000	125	120	90	900	1100	1250	150	140	100
DLK 160 Extended Carriage 6 Split Rollers	160	4000	2000	2800	320	300	150	5000	3000	3500	400	360	180
DLK 200 Extended Carriage 6 Split Rollers	200	8000	3100	4400	510	480	275	10000	4400	4900	600	560	310

Internal Profile Rail Guided

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QST 60 Dual Carriage	60	800	1010	2510	23	143	125	900	1415	3525	33	190	176
QST 80 Dual Carriage	80	2000	2542	6050	76	430	392	2500	3570	8500	107	604	550
QST 100 Dual Carriage	100	4000	2910	7360	101	597	532	5000	4082	10300	142	838	745

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QST 60 Dual Carraige Extended Carriage	60	800	1010	2510	23	143	125	900	1415	3525	33	190	176
QST 80 Dual Carraige Extended Carriage	80	2000	2542	6050	76	430	392	2500	3570	8500	107	604	550
QST 100 Dual Carraige Extended Carriage	100	4000	2910	7360	101	597	532	5000	4082	10300	142	838	745

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QST 60 Extended Carriage	60	800	1010	2510	23	143	125	900	1415	3525	33	190	176
QST 80 Extended Carriage	80	2000	2542	6050	76	430	392	2500	3570	8500	107	604	550
QST 100 Extended Carriage	100	4000	2910	7360	101	597	532	5000	4082	10300	142	838	745

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QST 60	60	800	1010	2510	23	143	125	900	1415	3525	33	190	176
QST 80	80	2000	2542	6050	76	430	392	2500	3570	8500	107	604	550
QST 100	100	4000	2910	7360	101	597	532	5000	4082	10300	142	838	745

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QSK 60 Dual Carriage	60	800	1010	2510	23	143	125	900	1415	3525	33	190	176
QSK 80 Dual Carriage	80	2000	2542	6050	76	430	392	2500	3570	8500	107	604	550
QSK 100 Dual Carriage	100	4000	2910	7360	101	597	532	5000	4082	10300	142	838	745

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QSK 60 Dual Carriage Extended Carriage	60	800	1010	2510	23	143	125	900	1415	3525	33	190	176
QSK 80 Dual Carriage Extended Carriage	80	2000	2542	6050	76	430	392	2500	3570	8500	107	604	550
QSK 100 Dual Carriage Extended Carriage	100	4000	2910	7360	101	597	532	5000	4082	10300	142	838	745

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QSK 60 Extended Carriage	60	800	1010	2510	23	143	125	900	1415	3525	33	190	176
QSK 80 Extended Carriage	80	2000	2542	6050	76	430	392	2500	3570	8500	107	604	550
QSK 100 Extended Carriage	100	4000	2910	7360	101	597	532	5000	4082	10300	142	838	745

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QSK 60	60	800	1010	2510	23	143	125	900	1415	3525	33	190	176
QSK 80	80	2000	2542	6050	76	430	392	2500	3570	8500	107	604	550
QSK 100	100	4000	2910	7360	101	597	532	5000	4082	10300	142	838	745

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
DST 120 Dual Carriage	120	800	1405	1650	64	77	76	900	1776	2090	81	97	96
DST 160 Dual Carriage	160	4000	3900	5020	255	262	258	5000	5570	7050	358	369	364
DST 200 Dual Carriage	200	8000	11080	14600	915	980	960	10000	15600	20600	1285	1375	1345

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
DST 120 Dual Carriage Extended Carriage	120	800	1405	1650	64	77	76	900	1776	2090	81	97	96
DST 160 Dual Carriage Extended Carriage	160	4000	3900	5020	255	262	258	5000	5570	7050	358	369	364
DST 200 Dual Carriage Extended Carriage	200	8000	11080	14600	915	980	960	10000	15600	20600	1285	1375	1345

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
DST 120 Extended Carriage	120	800	1405	1650	64	77	76	900	1776	2090	81	97	96
DST 160 Extended Carriage	160	4000	3900	5020	255	262	258	5000	5570	7050	358	369	364
DST 200 Extended Carriage	200	8000	11080	14600	915	980	960	10000	15600	20600	1285	1375	1345

Product	Size	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
DSK 120	120	800	1405	1650	64	77	76	900	1776	2090	81	97	96
DSK 160	160	4000	3900	5020	255	262	258	5000	5570	7050	358	369	364
DSK 200	200	8000	11080	14600	915	980	960	10000	15600	20600	1285	1375	1345

V Groove Guided

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
EGT 30	30	600	60	60	5	6	7	750	90	90	10	13	14
EGT 40	40	1200	315	450	18	40	30	1500	350	500	20	44	33
EGT 60	60	2000	450	675	30	70	50	2500	500	750	33	77	55
EGT 80	80	3500	900	1000	75	200	150	4200	1000	1125	82	220	165

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
EGT 30 Dual Carriage	30	600	60	60	5	6	7	750	90	90	10	13	14
EGT 40 Dual Carriage	40	1200	315	450	18	40	30	1500	350	500	20	44	33
EGT 60 Dual Carriage	60	2000	450	675	30	70	50	2500	500	750	33	77	55
EGT 80 Dual Carriage	80	3500	900	1000	75	200	150	4200	1000	1125	82	220	165

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
EGT 30 WAC Dual Carriage	30	600	60	60	5	6	7	750	90	90	10	13	14
EGT 40 WAC Dual Carriage	40	1200	315	450	18	40	30	1500	350	500	20	44	33
EGT 60 WAC Dual Carriage	60	2000	450	675	30	70	50	2500	500	750	33	77	55
EGT 80 WAC Dual Carriage	80	3500	900	1000	75	200	150	4200	1000	1125	82	220	165

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
EGT 30 WAC	30	600	60	60	5	6	7	750	90	90	10	13	14
EGT 40 WAC	40	1200	315	450	18	40	30	1500	350	500	20	44	33
EGT 60 WAC	60	2000	450	675	30	70	50	2500	500	750	33	77	55
EGT 80 WAC	80	3500	900	1000	75	200	150	4200	1000	1125	82	220	165

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
EGK 30	30	600	60	60	5	6	7	750	90	90	10	13	14
EGK 40	40	1200	315	450	18	40	30	1500	350	500	20	44	33
EGK 60	60	2000	450	675	30	70	50	2500	500	750	33	77	55
EGK 80	80	3500	900	1000	75	200	150	4200	1000	1125	82	220	165

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
EGK 30 Dual Carriage	30	600	60	60	5	6	7	750	90	90	10	13	14
EGK 40 Dual Carriage	40	1200	315	450	18	40	30	1500	350	500	20	44	33
EGK 60 Dual Carriage	60	2000	450	675	30	70	50	2500	500	750	33	77	55
EGK 80 Dual Carriage	80	3500	900	1000	75	200	150	4200	1000	1125	82	220	165

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
EGK 30 WAC Dual Carriage	30	600	60	60	5	6	7	750	90	90	10	13	14
EGK 40 WAC Dual Carriage	40	1200	315	450	18	40	30	1500	350	500	20	44	33
EGK 60 WAC Dual Carriage	60	2000	450	675	30	70	50	2500	500	750	33	77	55
EGK 80 WAC Dual Carriage	80	3500	900	1000	75	200	150	4200	1000	1125	82	220	165

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
EGK 30 WAC	30	600	60	60	5	6	7	750	90	90	10	13	14
EGK 40 WAC	40	1200	315	450	18	40	30	1500	350	500	20	44	33
EGK 60 WAC	60	2000	450	675	30	70	50	2500	500	750	33	77	55
EGK 80 WAC	80	3500	900	1000	75	200	150	4200	1000	1125	82	220	165
